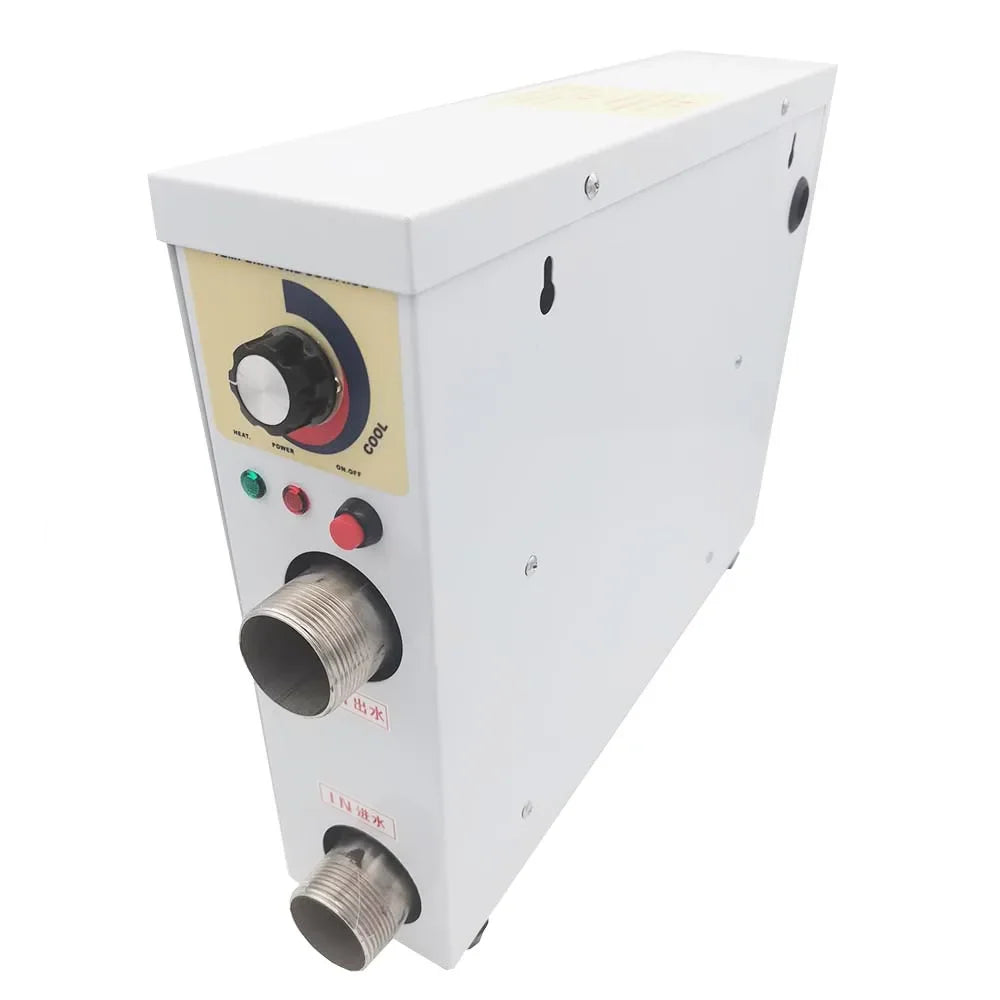

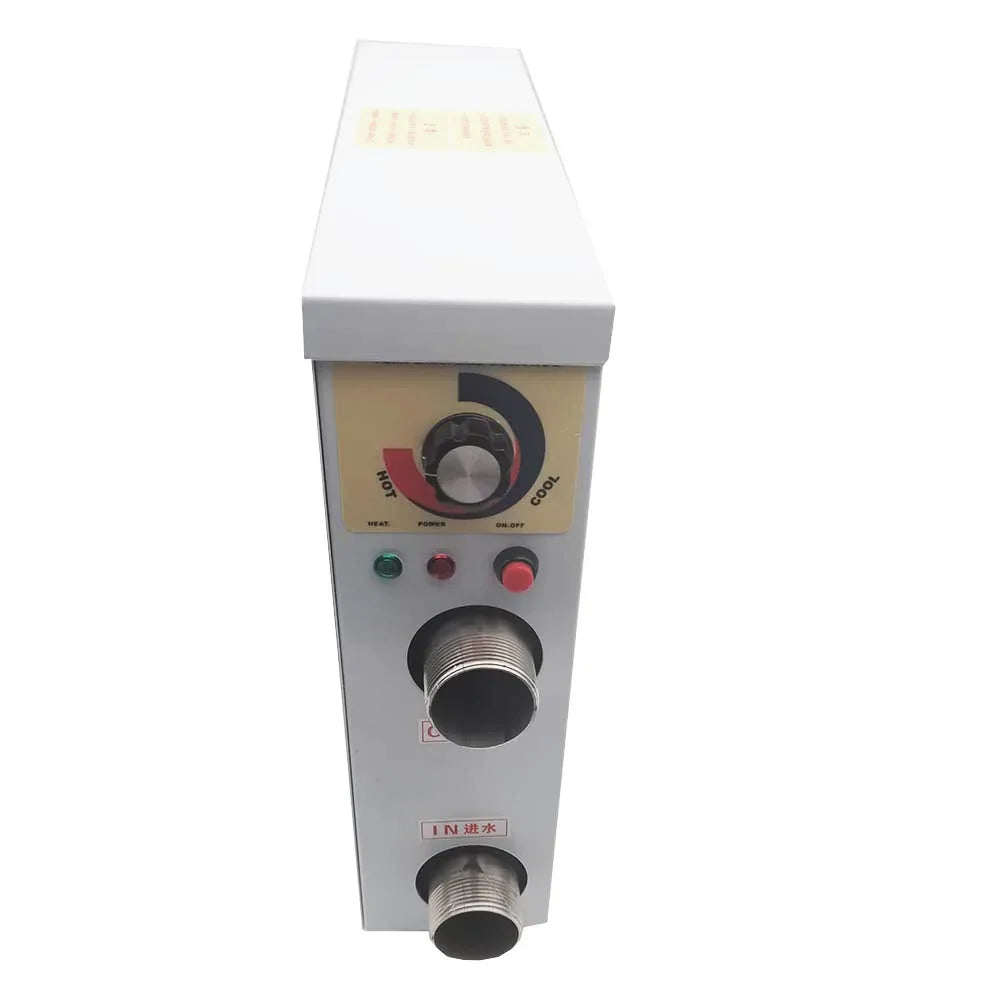

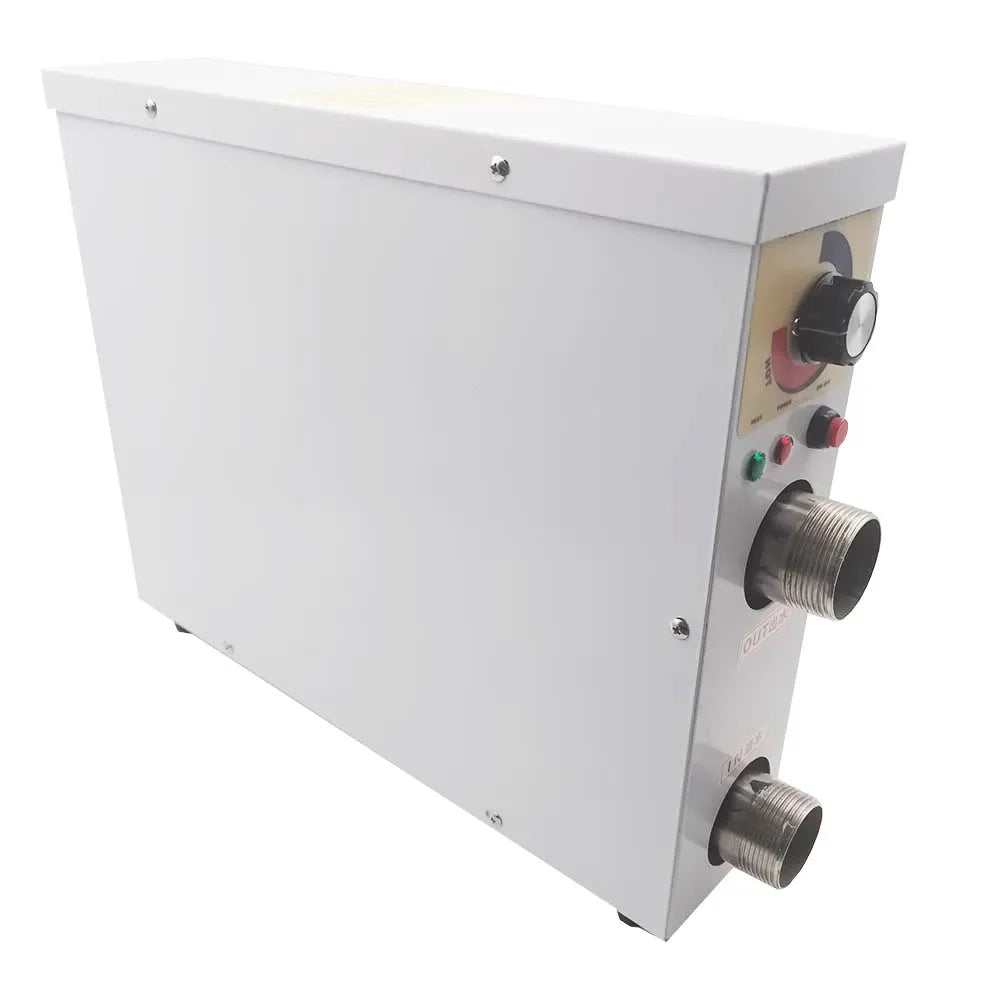

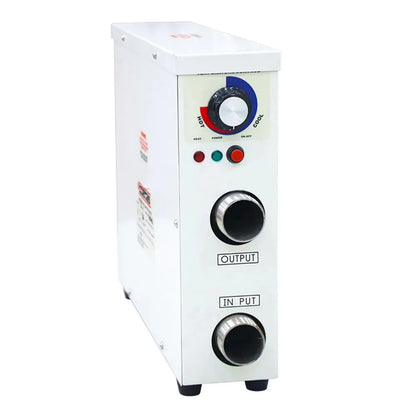

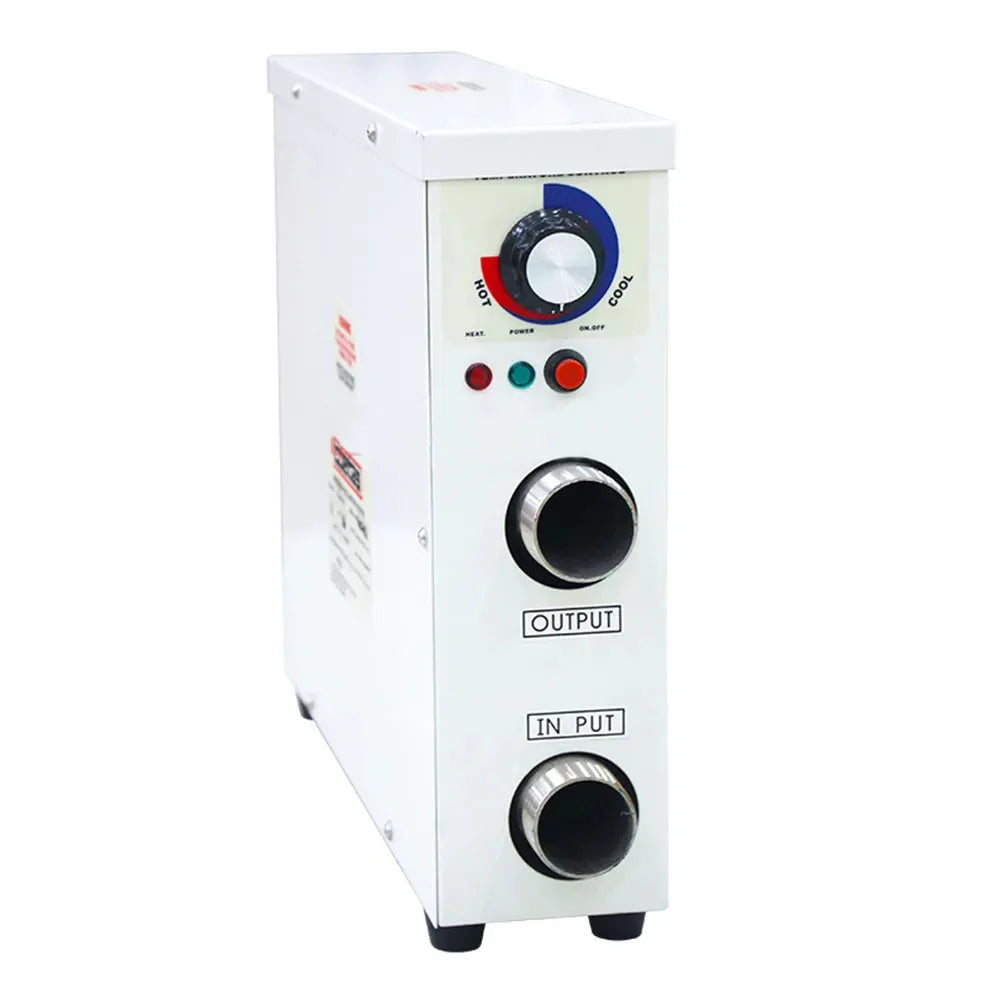

5.5KW/9KW/11KW15KW/18KW Heat Pump Swimming Pool Heater Swimming Pool SPA Electric Water Heater 220V / 380V

The thermostat needs to be used with a pump of corresponding size. If the pump does not match the thermostat and the flow is too small, the heating tube will dry up and cause damage.

"5.5kw-15kw" thermostat matches the pump flow rate "5 cubic meters per hour" or more

"18kw-36kw" thermostat matches the pump flow rate "10 cubic meters per hour" or more

"40kw-60kw" thermostat matches the pump flow rate "15 cubic meters per hour" or more thermostat is recommended to be used with "circulating water pump"

1. Operation sequence: turn on the water pump first, then turn on the thermostat. When shutting down, turn off the thermostat first, wait a while (depending on the power of the thermostat, ranging from 10 seconds to 1 minute), and then turn off the pump.

2. Reliable leakage protection equipment must be installed, which must be installed and debugged by a licensed electrician, and checked and maintained monthly.

3. The auxiliary heating effect is better. Direct heating requires the use of more powerful machines.

The power of the supporting water pump below 5.11Kw is not less than 750W, and the flow rate is not less than 13 cubic hours per hour.

The supporting water pump above 11Kw, the power is not less than 1.1KW, the flow is not less than 18 cubic meters per hour
